This case study is about deep excavation by pile walls methods in Rayong, Thailand. In this presentation, the author will briefly how to model deep excavation in 3D by GTS-NX such as pile walls, strut, base slab, etc and how we apply the result in the structure model.
กรณีศึกษาการขุดดินระดับลึก โดยวิธีกำแพงเสาเข็มเจาะต่อเนื่อง (Pile wall) ในจังหวัดระยองของประเทศไทย การนำเสนอครั้งนี้เป็นการแสดงแบบจำลอง 3 มิติ โดยการใช้โปรแกรม GTS-NX โดยจะแสดงวิธีสร้างแบบจำลอง pile walls strut และ base slab และรวมทั้งวิธีในนำผลลัพธ์ไปใช้
Utility Design Consultants Co., Ltd.
UDC was established in 1996, by a group of expert engineers who graduated from UC. Berkley, USA, Australia, Thailand. With more than 20 years of experience, our experienced multidisciplinary teamwork has offered excellent services of diversifying needs for our clients. We are poised to compete in the new millennium of globalization of trade and technology, to serve the diversifying needs with high quality and effective cost.
- Overview of project (ภาพรวมของโครงการ)
- Construction method (วิธีการก่อสร้าง)
- Construction stages (ขั้นตอนการก่อสร้าง)
- Pile walls modelling (แบบจำลองโดยผนังเสาเข็ม)
- Local coordinates(พิกัดเฉพาะแห่ง) and End beam release

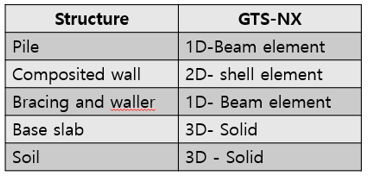

- Method to model pile wall: 3 ways
( Volume elements, Beam elements, Shell elements)

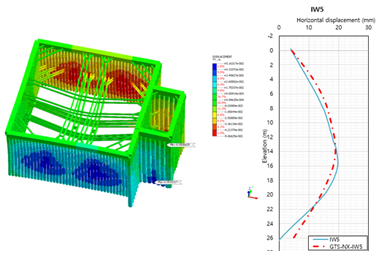

- Extract results from GTS NX (ผลลัพธ์จากโปรแกรม): Bending moments, displacement, axial force, shear force.
