midas GTS NX Case Study Webinar Series Case Study of SG Metro Consulting
3D Excavation Work for Detention Tank
May 27, 2020 (Wed) 10:00 ~ 11:00 (SGT/MYT) | Webinar Duration : 60 Min
Done
OVERVIEW

MIDAS Geo launches the new series of training for the geotechnical engineers. We are going to provide e-learning opportunity based on the real projects shared by MIDAS users. This training will help you enhance your design process by using the practical software tool developed by the practical engineers.

PROJECT INFO

3D Excavation Work for Detention Tank

This case study webinar is conducted based on the real project done by Singapore Metro Consulting in Singapore. 9 reference boreholes are considered for ground condition in this case. In addition, ERSS contains sheet pile wall, strut and waler. There are 3 stages for excavation around 5.7m of depth. The water level is considered from each excavation stage on the floor of excavation.

USER INFO

Singapore Metro Consulting

is a dedicated team of professional engineers and project managers working with government agencies, private clients, communities and colleagues to develop and implement innovative and win-win solutions to today’s complex projects for the betterment of people’s life.



 - Address: 21 Woodlands Close #02-17 PRIMZ BIZHUB, Singapore 737854

 - Phone: +65 6635 8234

Read all
The event is done.
Thank you for your interest.
You are registered.

Thanks for registration.
The registration confirmation email has been sent to your email

You are registered.

Thanks for registration.
Please check the confirmation email from GoToWebinar for joining the session.

CONTENTS
01 Bedding Plane

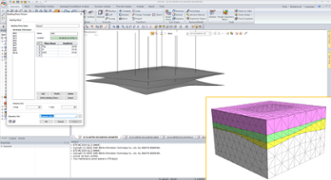

Using bedding plane function with 9 number of reference boreholes to assume the realistic ground condition.



02 ERSS Modeling

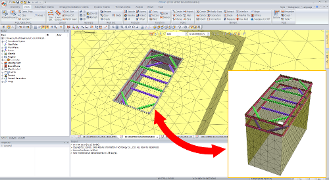

Earth Retaining Stabilizing System for excavation work contains sheet pile, strut and waler.



03 Water Level

Considering water level, it is aligned with floor of excavation from each excavation stages.



04 Result Checking

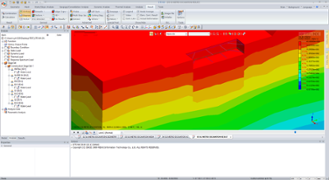

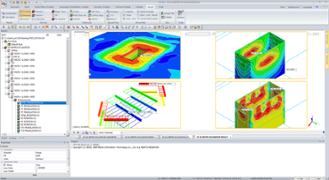

Checking the results of total / horizontal / vertical displacement and forces inside retaining wall and strut.
