This online course session will focus on tunneling in the soft ground using the Shield TBM using the non-linear static construction stage method.
The Shield TBM method is more widespread in urban areas or in areas with a sizeable human population. To reduce the effect of the construction process, this method is widely considered as a worthy replacement for NATM Tunnels. This tunneling method can be applied in soft ground materials or squeezing rock/soil, therefore it is essential to simulate accurately in 3D.
In this 1 hour program, GTS NX will be used to demonstrate the modeling of the Shield TBM Tunnel in 3D and all the necessary ground states and applications of various forces on the soil and structural elements will be demonstrated.
All the different training examples through the webinar sessions and certification tasks are designed to enhance the understanding of training. Engineering professionals and graduates are invited to attend this course for free.
Tunneling Methods
Shield Tunneling Method
Additional Design Elements
Workflow - Modeling Overview

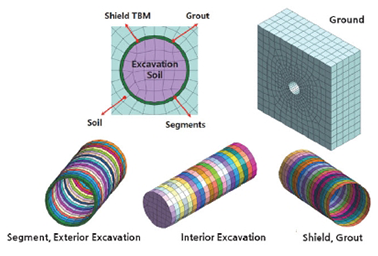

2D Faces Creation & Extrusion to 3D
Solids & Boolean Connections
Shield Forces Application
Meshing & Loading Conditions
Construction Stages Definition
Analysis Results

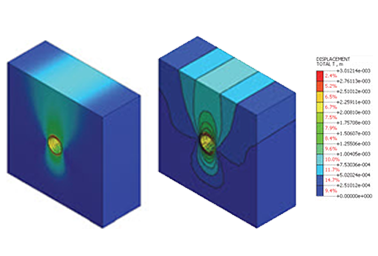

(Ground Deformations/Ground Stress State/Soil Plasticity)

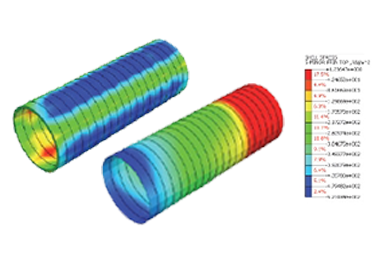

Forces & Bending Moments
Image Export & 3D PDF Generation
Generate the Model
Run the Analysis Case
Ground Deformations, Structural Element Forces
Fill up the Annexure
Official certificate of completion will be provided to participants who have completed the course and submitted their homework three out of four courses.
GTS NX Training license will be provided to the training attendees for free in order to provide the hands-on experience of numerical analysis and help conduct the training assignments.
As for the assignment for each topic, MIDAS engineers will give the dedicated support and review to help your hands-on experience.
Participants who show a lot of questions and great effort throughout the course will receive a small gift of gratitude.
